Semi-Auto 5~100 KG Powder packaging machine

Product Details


"The semi-automatic powder filling machine is an efficient and reliable packaging equipment designed to meet the measurement and filling needs of various powder materials. This device can accurately complete multiple tasks such as measurement and filling, and is widely used in various industries such as food, medicine, chemical, and agriculture

Semi automatic powder filling machines usually use advanced screw or measuring cup measurement technology, equipped with high-precision servo motors, real-time monitoring and adjustment of flow rate, with an error of only 0.5-2g. The filling head accurately penetrates 2-3 centimeters into the bottle mouth, effectively avoiding bottle mouth contamination caused by excessive flow rate or material foaming. The filling head provides three levels of settings: large, medium, and small, to meet the filling needs of different specifications. The filling speed and accuracy can be flexibly adjusted

Suitable for measuring and filling various powder materials, such as flour, milk powder, coffee powder, etc. Its structure is simple, reliable, and has few faults. It adopts a conical piston design, with good sealing performance, accurate dispensing volume, and convenient liquid volume adjustment. The part in contact with the powder is made of stainless steel, which is corrosion-resistant, wear-resistant, and easy to operate"

半自动5~100KG粉末灌装机
型号                         ModelCD-FCZ25CD-FCZ50FCD-FCZ50KCD-DGS50FCD-DGS50K
机器名称MachineNameSemi-Auto 5~100 KG   Powder  packaging machine
灌装范围                Filling Range5~100KG
灌装速度                Filling Speed3~8 BPM5~8 BPM4~6 BPM
计量精度               Filling Precision±0.2%~±0.5%
功率                      Power3.5KW/380V,50Hz/60Hz1.5KW/380V,50Hz/60Hz3 KW/380V,50Hz/60Hz2.2KW/380,50Hz/60Hz
工作气压            Gas Pressure0.4~0.6Mpa
耗气量                      Gas Consumption0.8~1Nm³/H0.5~1 Nm³/H
尺寸                          Size mm950*900*3100820*1400*25003000*1000*2800820*1400*2500800*900*2200
重量                         Weight400KG460KG460KG600KG630KG
适用产品  Applicable products化工原料、塑料颗粒,粮食、饲料、种子,水泥,谷物、面粉、糖,化肥、农药等物料‌/Chemical raw materials, plastic pellets, grains, feed, seeds,   cement, grains, flour, sugar, fertilizers, pesticides and other materials
包装方式 Packaging   method缠绕膜以及出口木箱Wrap   film&export wooden box

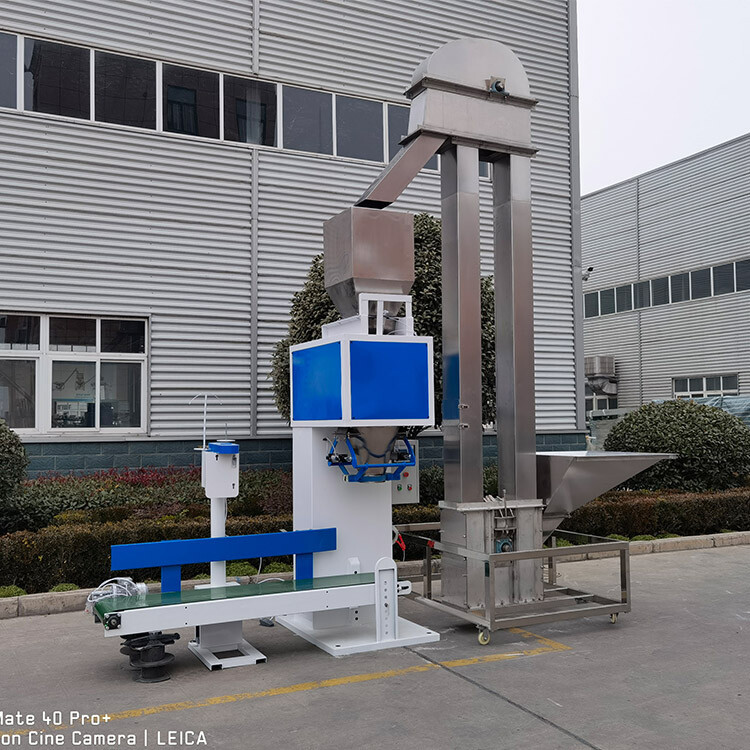

详情_008 (2).jpg
