Model：

CD-SAIBC1

CD-AIBC1

CD-AIBC2

Specifciation：

"Filling Nozzle：single

Speed：20-30drums/h/200kg   8-10drums/h/1000L

Filling Scope：200-1000kg

Accuracy：≤0.2%

Power：2kW

Weight：800kg

Size(L*W*H)：4500*1800*1800mm"

Product introduction：

"The system adopts a weighing filling method with high measurement accuracy and is not affected by materials.

A feeding valve consisting of fast and slow additives can improve both filling speed and accuracy.

The measurement range is large, and the measurement error is less than 0.5%.

The filling head adopts an anti drip device, which produces no bubbles in the filled material and has a good effect.

Main structure and working principle

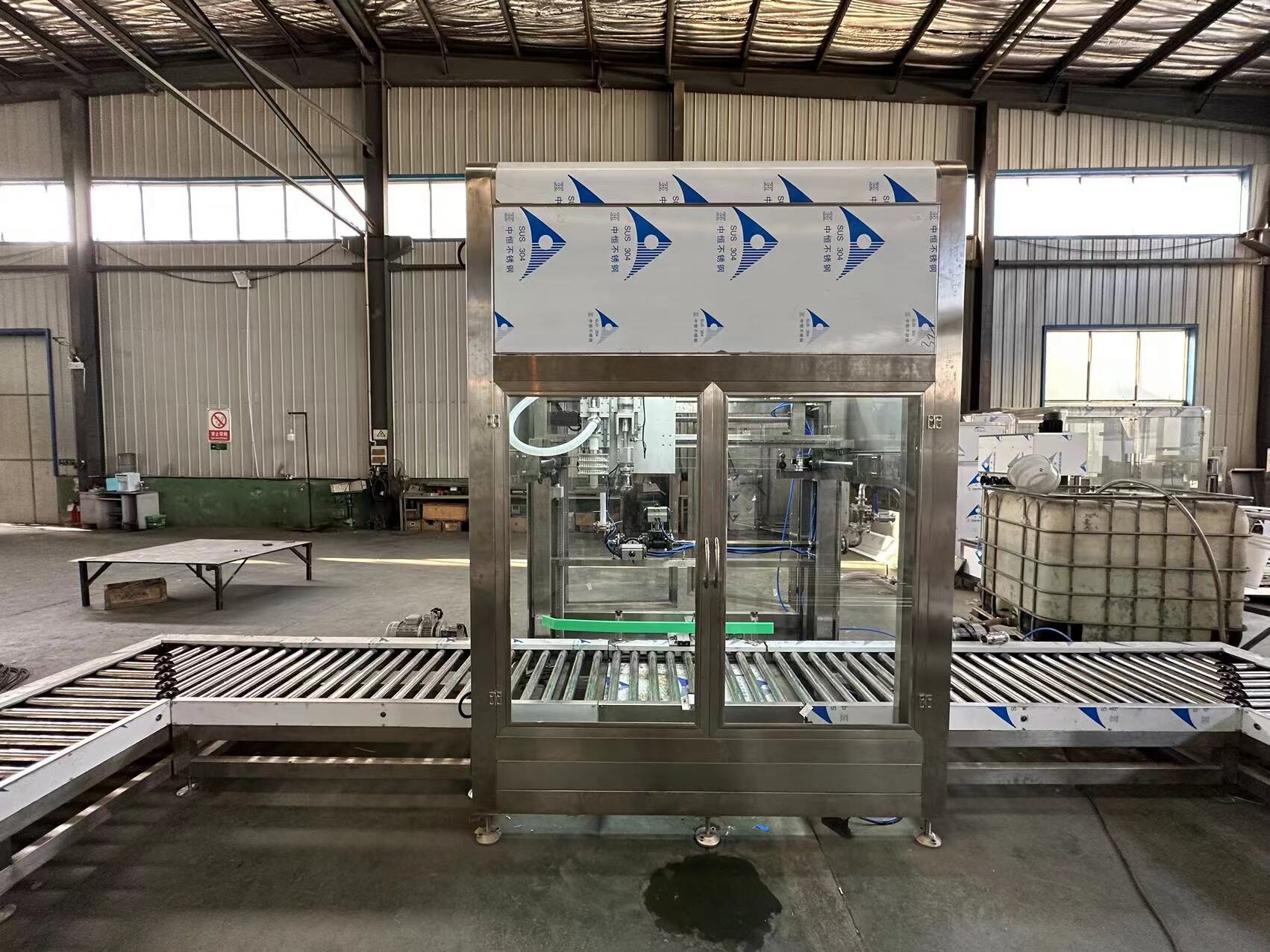

The computerized quantitative filling machine consists of a feeding system, weighing system, frame, pneumatic control, control system, power raceway, and other components.

The feeding mechanism uses solenoid valves to perform fast and slow feeding through cylinders.

Filling methods: ordinary conventional filling and lifting submerged filling (to be selected when ordering according to needs)

The weighing system consists of weighing brackets, sensors, and weighing platforms equipped with non powered rollers and frame supports, as well as a filling system.

Pneumatic control system: controls fast and slow feeding valves.

The weighing platform is not allowed to be subjected to additional external forces during use."
