Model：
ET-FALSP
Specifciation：
Size：L*W*H 2400*760*1250mm
Applicable bottle diam：φ:40~110mm H:30~350mm
Applicable Label Size：L:80~370mm W:20~200mm
Power Supply：3P AC380V 50/60Hz
Labeling speed：40~80 PCS/min
Weight：450KG
Power：750W
Labeling accuracy：±1mm
Product introduction：

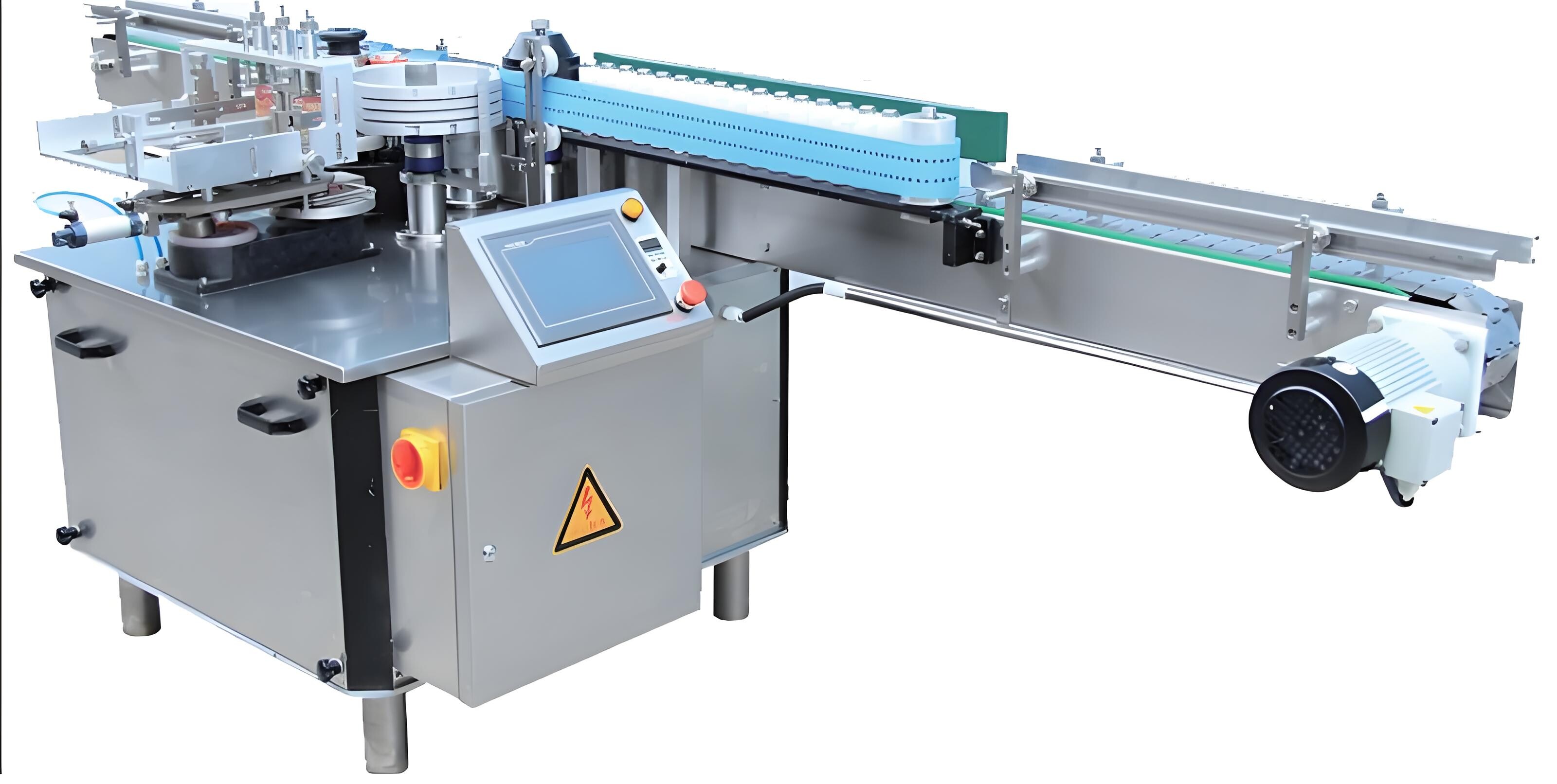

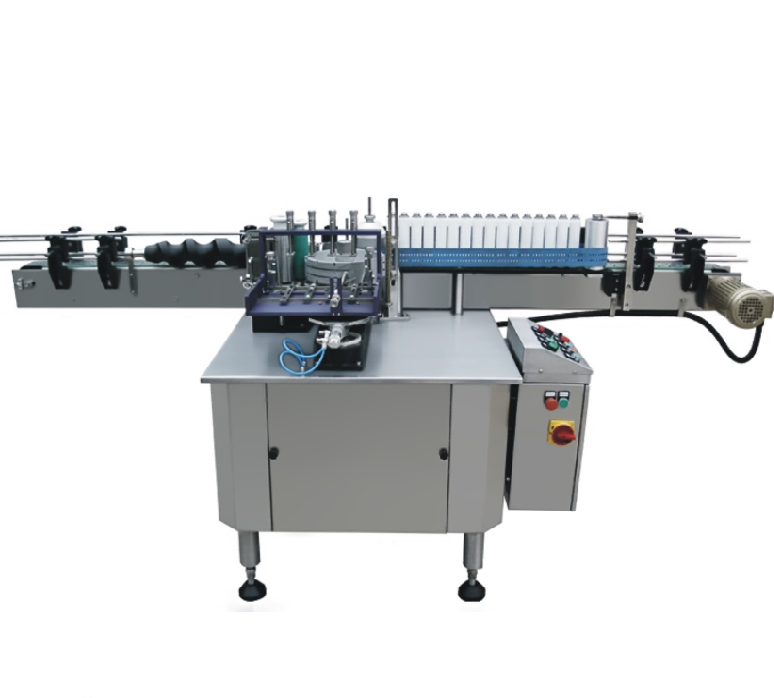

"The working principle of the linear paste labeling machine is to use a rotating structure and a turntable to drive the product, completing the label attachment process on the turntable. The machine is equipped with a paste system that can quickly and accurately adhere labels to the surface of the product
The specific working process of the linear paste labeling machine is as follows:
Paper separation: The machine uses rubber wheels to draw a small amount of glue to the transmission device to attach the label.
Labeling: The label is brought to the position of the vacuum suction roller and attached to the paper conveyor belt through vacuum suction to enter the labeling process.
Attachment: The label enters the labeling position through a conveyor belt and is attached to the surface of the product using vacuum suction
The characteristics of the linear paste labeling machine include:
Easy to operate: The machine is designed reasonably and easy to operate and maintain.
Save glue: Adopt an efficient glue application system to reduce glue waste.
Accurate and flat labeling: Through advanced sensor technology and vacuum suction, the accuracy and flatness of label attachment are ensured.
Wide applicability: cylindrical containers suitable for industries such as food, pharmaceuticals, daily chemicals, pesticides, chemical products, etc
The application scenarios of linear paste labeling machines are mainly concentrated in production environments that require efficient and precise labeling, especially in industries such as food, medicine, and daily chemical products, which can significantly improve production efficiency and product quality"
