Model：

"CD-ALTF2

CD-ALTF4

CD-ALTF6

CD-ALTF8

CD-ALFT10

CD-ALTF12"

Specifciation：

"Filling Nozzle:   2、4、6（customized）

Filling Scope  500ml-5L（customzied）

Filling Speed  2000bottle/h/1L

Accuracy:  ±0.2%

Power:  5KW

Power Supply      380V ,50Hz/60Hz

Air Pressure  0.6-0.8mpa

Air consumption:    6～7m³/min

Size(L*W*H)   1800*1500*2300mm

Weight:1000kg"

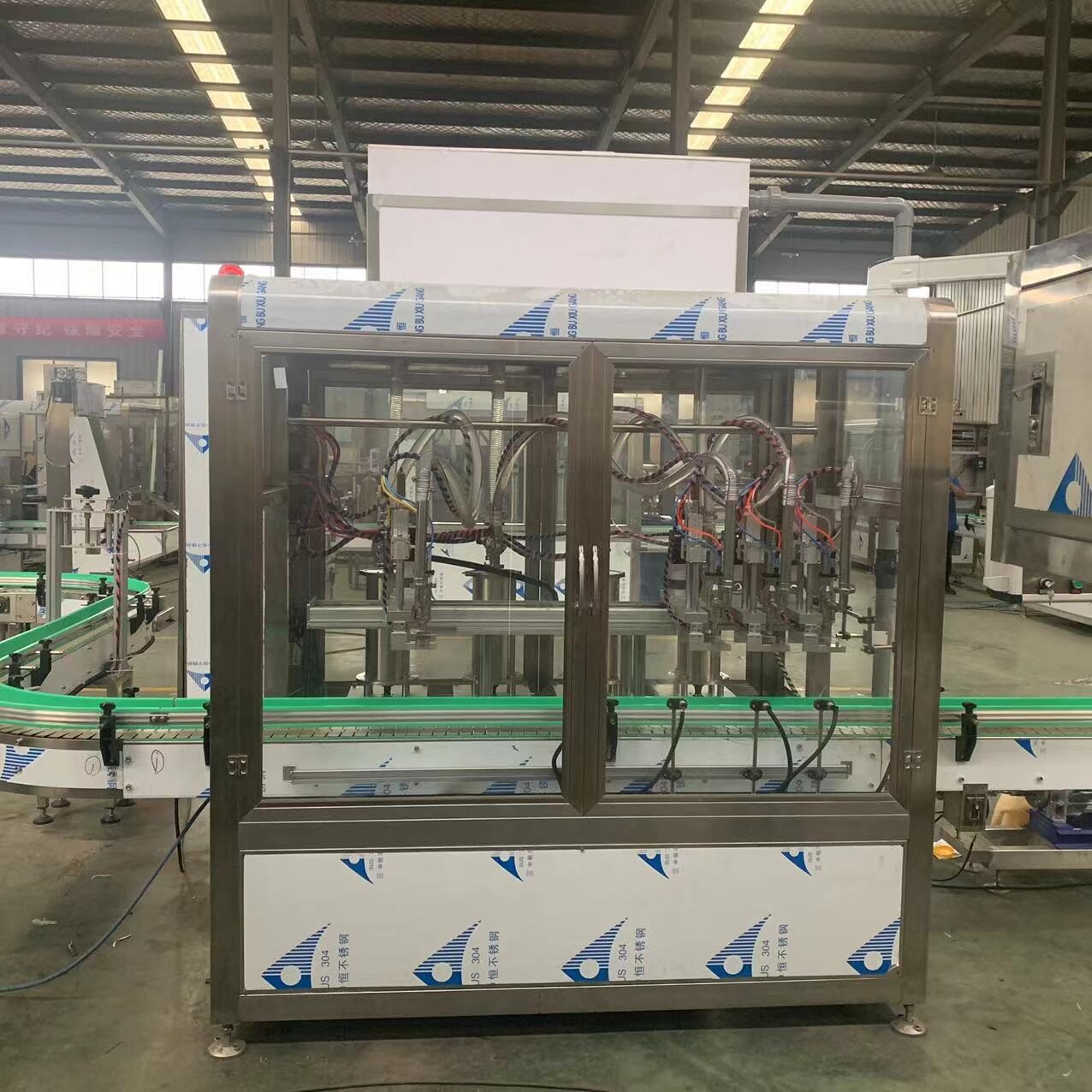

Product introduction：

"1. Quick adjustment: The conversion of bottle type products is fast, with a formula saving function. After saving the parameters, one button can complete the adjustment, saving time and being very convenient and practical;

2. Wide range of applicable bottle types: As long as it can stand on the line without tipping over and the bottle mouth is vertically upward, it is also suitable for various shaped bottles. No special adjustment is required, and the bottles can be freely placed and transported, greatly reducing the labor intensity of workers;

3. Widely applicable products: Suitable for cream and oil products in the cosmetics and food industries, such as shampoo, laundry detergent, hand sanitizer, shower gel, hair conditioner, yogurt, essential oils, food/industrial oils, etc;

4. High efficiency: fast filling speed, good stability, each filling capacity cylinder is individually controlled by branded servo motors, with high filling accuracy;

5. Easy to clean: The clamp type connection is fixed, and the cylinder body and piston rod are separately connected, which can be partially disassembled and cleaned without the use of tools. The main control screen is equipped with an automatic cleaning button. The storage tank for the overhead perspective window is equipped with an automatic flushing rotating head for automatic cleaning; The mobile external storage tank is convenient for washing in the cleaning room; Select according to customer needs.

"
