Specifciation：

"Filling Nozzle：2、4（Customized）

Power：0.75KW

Filling Scope：100ml-10L（Customized）

Height of bottle：≥100-450mm

Diameter of bottle neck：≥20mm

Size(L*W*H)：1100*750*1800mm

Speed：200-500buckets/h

Weight：270Kg

Accuracy：≤±0.3%   "

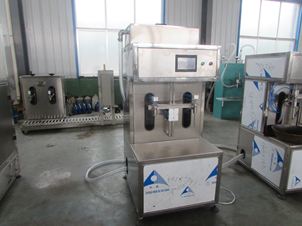

Product introduction：

"Supported by PLC software, adjusting the quantity only requires setting the target quantity on the touch screen, and the device can automatically increase or decrease to reach the target quantity. Color touch display, complete all operations on the touch screen, and provide various functions such as operation instructions. Place the bottle on the workbench. When the foot switch is pressed (or the automatic start button is pressed), the lifting cylinder descends to insert the filling head into the bottle, and the filling head control valve opens to start filling. When the flow rate reaches the preset number, a command is issued to close the corresponding filling head. After all filling heads are closed, the lifting cylinder ascends to extract the filling head from the bottle, completing the entire filling process."
