Model：

"CD-SALFF2

CD-SALFF4

CD-SALFF6

CD-SALPF2

CD-SALPF4

CD-SALPF6"

Specifciation：

"Filling Nozzle：2、4（Customized）

Power：0.75KW

Filling Scope：100ml-10L（Customized）

Height of Bottle：≥100-450mm

Diameter of Bottle：≥20mm

Size(L*W*H)：1100*750*1800mm

Speed：200-500drum/H

Weight：270Kg

Accuracy：≤±0.3%   "

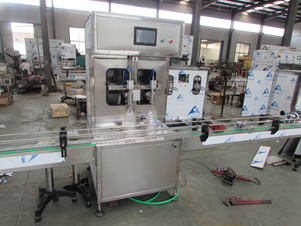

Product introduction：

"The filling machine adopts a flow meter filling method, which automatically tracks the temperature and density changes of the oil and adjusts the oil delivery amount at any time by the computer, reducing the errors caused by temperature and density changes in the oil delivery quality and achieving high measurement accuracy. Both use two measurement methods: fixed capacity filling and fixed quality filling.

Product features:

1. Equipped with an internal frequency converter, it has a dual speed filling function of fast first and then slow, which prevents the material from overflowing the container due to excessive filling speed

2. Made of stainless steel, it has stable and reliable performance, easy cleaning, and is not suitable for damage.

3. PLC microcomputer control, easy to operate, single person operation is sufficient, saving labor

4. The filling head adopts a vacuum suction anti drip device, which produces no bubbles during filling and reduces losses.

4. The filling speed and filling range can be adjusted as needed to achieve multi-purpose use of one machine.

Applicable products: coatings, inks, paints, lubricants, petrochemicals, fine chemicals, and other liquids, fluids, and paste products.  "
