Model：

"CD-SALWF1

CD-SALWF2

CD-SALWF4

CD-SALWF6"

Specifciation：

Size(L*W*H)：1000X400X700MM"

Product introduction：

"The system adopts a weighing filling method with high measurement accuracy and is not affected by materials.

The feeding valve is composed of fast and slow variable frequency speed regulation at the two ends, which can improve the filling speed and accuracy.

The measurement range is large, with a measurement error of plus or minus 10 grams per barrel. (Calculated based on 18L)

The filling head adopts a vacuum suction anti drip device, which produces no bubbles in the filled material and has a good effect.

5. Using world-renowned electrical and pneumatic components, with low failure rate, stable and reliable performance, and long service life.

Main structure and working principle

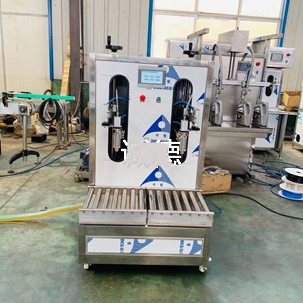

The computerized quantitative filling machine consists of a feeding system, weighing system, frame, pneumatic control, control system, and non powered raceway.

Feeding method: Continuous and stable feeding is required (using a feeding pump or hopper for pressurized feeding)

Filling methods: ordinary conventional filling and lifting submerged filling (to be selected when ordering according to needs)

The end of the filling process adopts a variable frequency deceleration system, which automatically decelerates when approaching the quantitative value to prevent overflow and ensure accuracy

Adopting a vacuum suction anti drip filling nozzle to prevent material leakage

The weighing system consists of weighing brackets, sensors, and weighing platforms equipped with non powered rollers and frame supports, as well as a filling system.

The weighing platform is not allowed to be subjected to additional external forces during use."
