Model：

"CD-ALFPF2

CD-ALFPF4

CD-ALFPF6

CD-ALFPF8

CD-ALFPF10

CD-ALFPF12"

Specifciation：

"Filling Nozzle：2、4、6、8、10、12（customzied）

Power： 4kW

Size(L*W*H)： 2000x1400x2200MM

Power Supply：380v  50hz

Filling Scope：1-10L（customized）

Height of bottle： Customized

Diameter of bottle：customzied

Speed: 130-150bottles/h/head

Accuracy： ≤±0.2%

Weight：800kg"

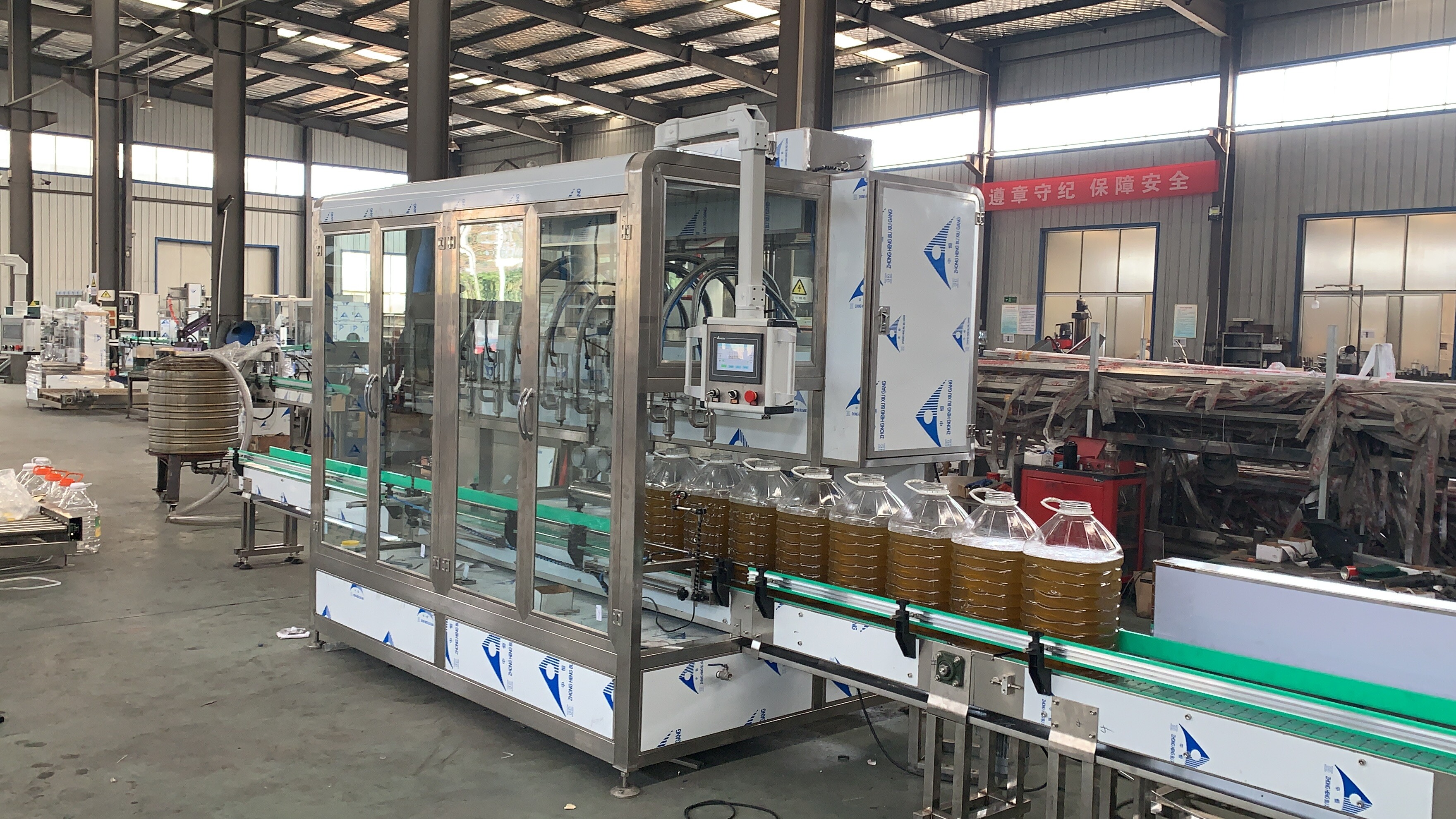

Product introduction：

"

1. This filling machine adopts high-precision flow meters and real-time temperature collection to compensate for the density changes of oil caused by temperature differences, effectively ensuring the accuracy of filling measurement

2. Adopting a touch screen human-machine interface, with complete functions, convenient, reliable, and simple operation;

3. 3. The filling capacity can be adjusted within a large range, with a division value of 1ml;

4. 4. The filling and blanking forms are oblique or direct, which are suitable for filling with different liquid properties. The oblique flushing type is suitable for liquid materials easy to form foam. The positioning forms of the filling nozzle are plug-in or suspended, which are suitable for products at different filling levels;

5. 5. The liquid supply can be in the form of high-level tanks or pumped liquid delivery, which greatly improves production capacity;

6. 6. Variable frequency speed regulation is adopted, and the fast pipe is mixed with the slow pipe, which effectively solves the overflow of steam foam during the rapid filling of pump pressure, and can ensure the filling accuracy;

7. 7. Unique filling head design and vacuum suction system ensure that on-site and packaged products are free from residual liquid contamination

8. The main electrical and pneumatic components are equipped with well-known high-quality components to ensure the reliability, accuracy, stability, and durability of the system operation."
