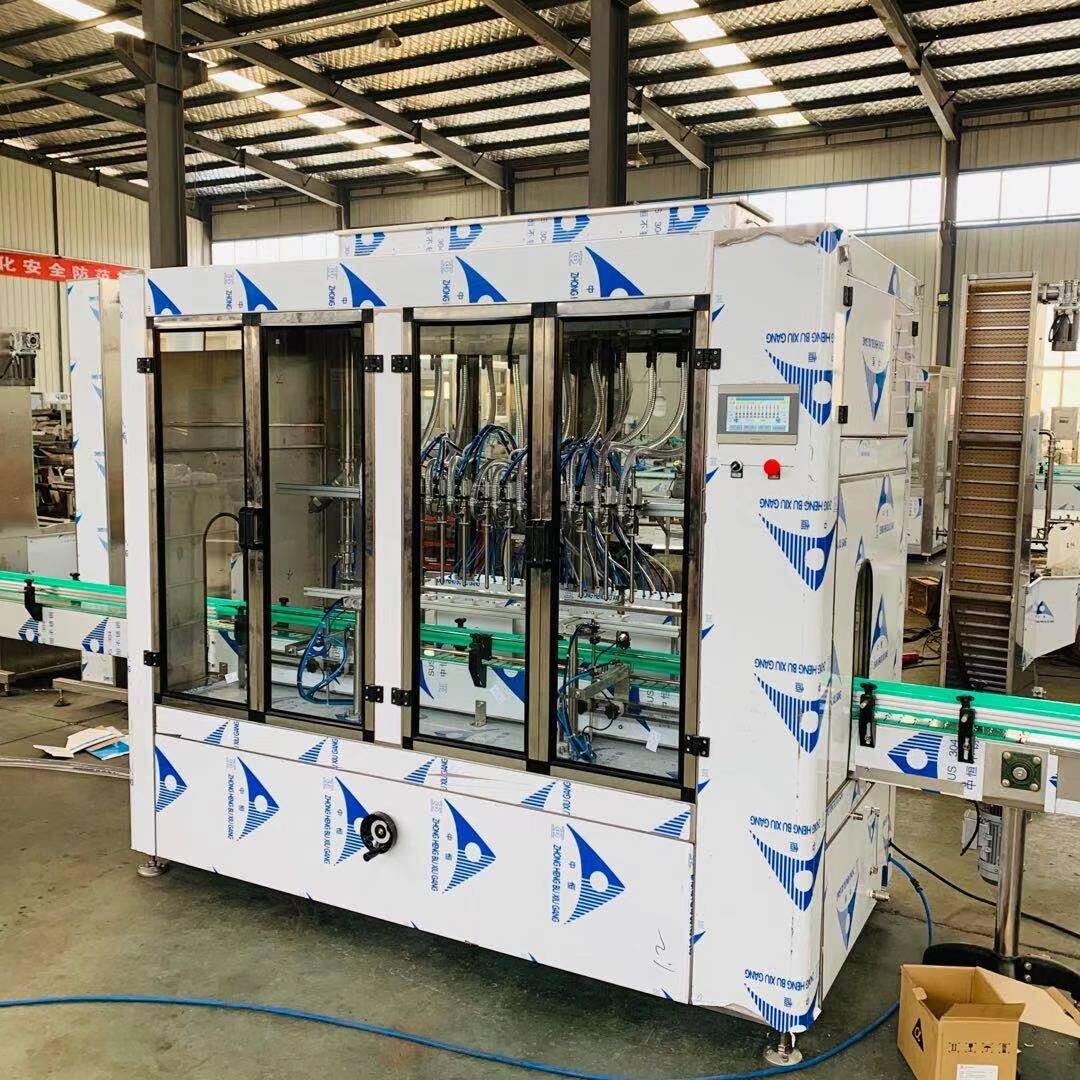

Model：

"CD-ALGF2

CD-ALGF4

CD-ALGF6

CD-ALGF8

CD-ALGF10

CD-ALGF12"

Specifciation：

"Power Supply：50HZ/60HZ  380v

Filling Nozzle：4、6、8、10、12（customzied）

Filling Scope：100ml-10L（customzied）

Speed：150-180bottle/h/head

Air Source：0.5-0.8MPa

Air Pressure：0.6-0.7MPa

Size(L*W*H)：2200*1050*2200mm

Weight：800kg

"

Product introduction：

"1. Advanced intelligent operating system

Supported by PLC software, adjusting the quantity only requires setting the target quantity on the touch screen, and the device can automatically increase or decrease to reach the target quantity. Color touch display, complete all operations on the touch screen, and provide various functions such as operation instructions.

2. Stable filling and fluid replenishment function

Adopting the principle of functional separation, the filling process is not refilled, and the refilling process does not involve filling, thus overcoming the instability of float filling with simultaneous refilling.

3. Wide applicability and easy adjustment

Suitable for filling most bottle types (especially irregular bottles), this machine overcomes the trouble of changing the dial when changing the bottle type of the rotary filling machine. For irregular bottle types that cannot be filled by the rotary filling machine, this machine has greater advantages."
